C04
Linear, bar and architectural gratings for drainage channels, trench covers, walkways and facade edges, set flush with the finished floor.
The range
Choose a product.
C04.1 Gratings

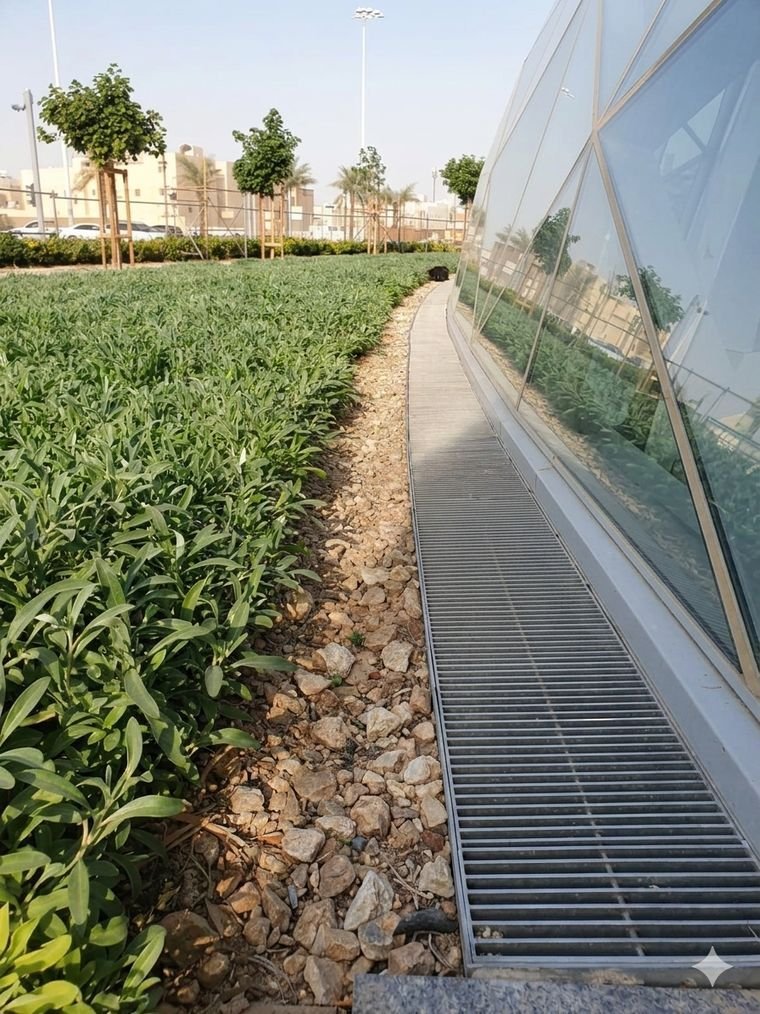

Linear slot gratings
Slim stainless bars for a clean architectural line.
Learn more
C04.2 Gratings

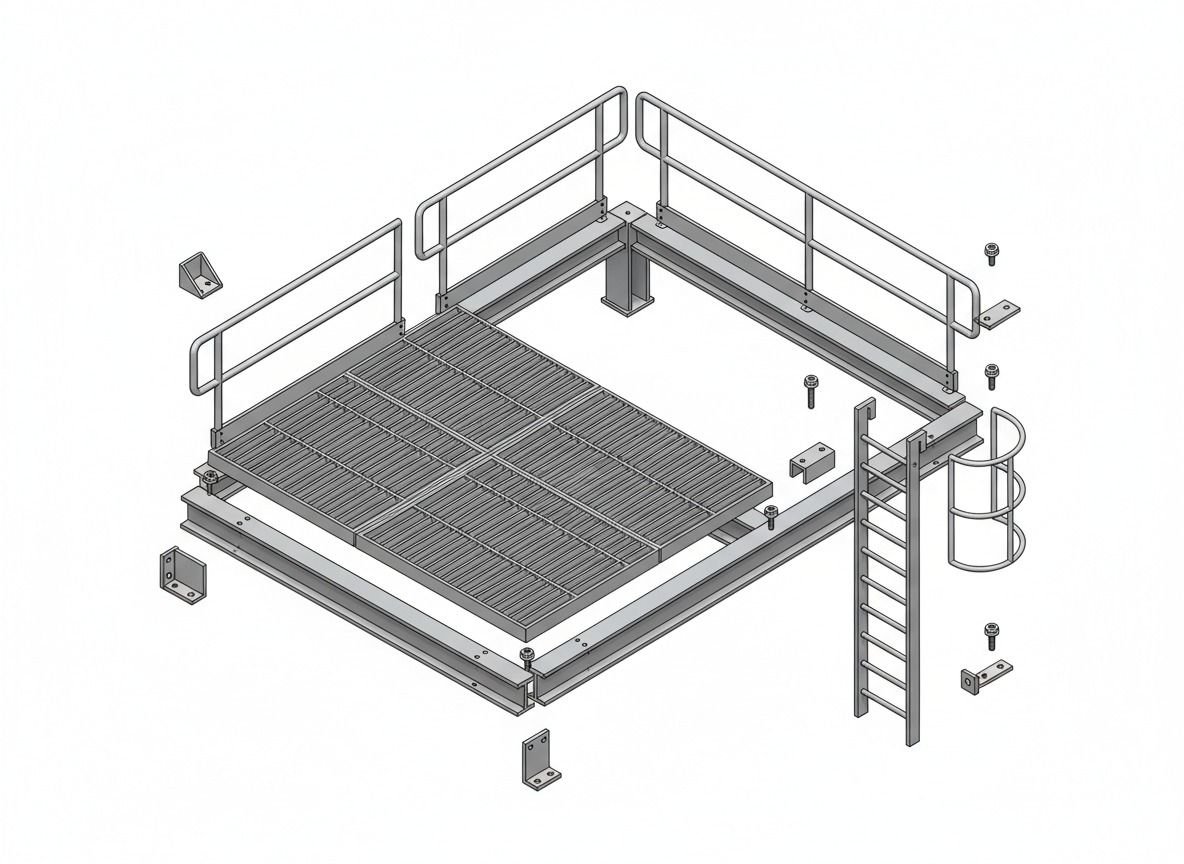

Bar gratings
Welded or pressed bar grating for walkways and platforms.
Learn more
C04.3 Gratings
Trench and channel covers
Covers with frames sized to your channel and load class.
Learn more
C04.4 Gratings
Heel and wheelchair safe
Narrow slot options for public areas.
Learn more
Gallery
Swipe or use the arrows · tap to enlarge
Overview

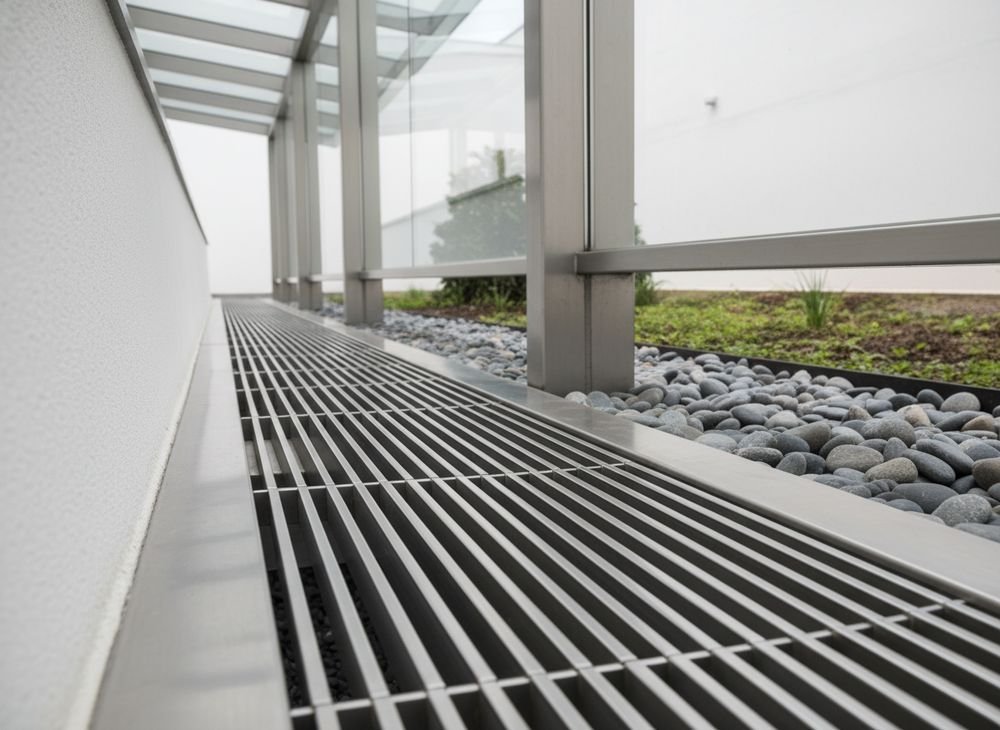

Good gratings disappear into the floor. We fabricate them to exact channel sizes so they sit flush, stay quiet underfoot and lift out easily for cleaning. Load class, bar spacing and slot width are chosen for the traffic above, from pedestrians and wheelchairs to service vehicles.
Where it goes
Built for real
conditions.
Stainless steel suits visible architectural areas and wet zones, while galvanized steel serves plant rooms and heavy duty areas. Frames, anchors and locking details are supplied with every run.
Tech specs
Typical specification.
Technical data
Engineering details.
Typical values. Final values follow the project specification and approved shop drawings.
Submittals
What you receive.
- Shop drawings and setting out drawings
- Structural calculations
- Material submittals and mill certificates
- Samples and mockups
- Inspection and test plan (ITP)
- Test reports, warranties and O&M manuals
Explore other products
Start a project
Bring us
a drawing
Send an early sketch, a sample board or a finished detail. We'll come back with material options, a buildable approach and a price.
