C07

Bollards

Fixed, removable, decorative and lit bollards in stainless and coated steel that protect people, storefronts and entrances while shaping how a site is used.

Gallery

Swipe or use the arrows · tap to enlarge

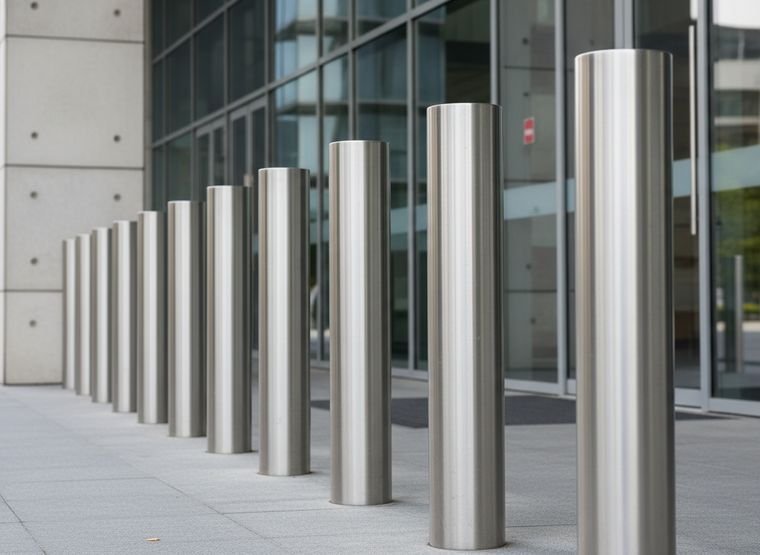

Stainless steel bollards at an entrance
Stainless steel bollards at an entrance

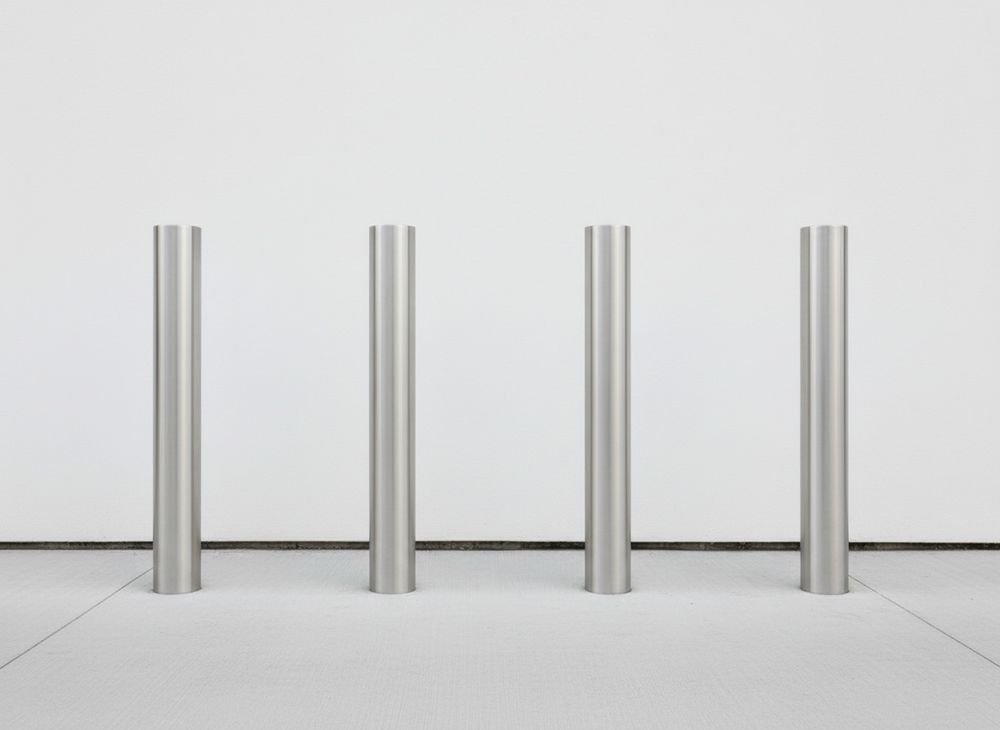

Stainless bollards
Stainless bollards

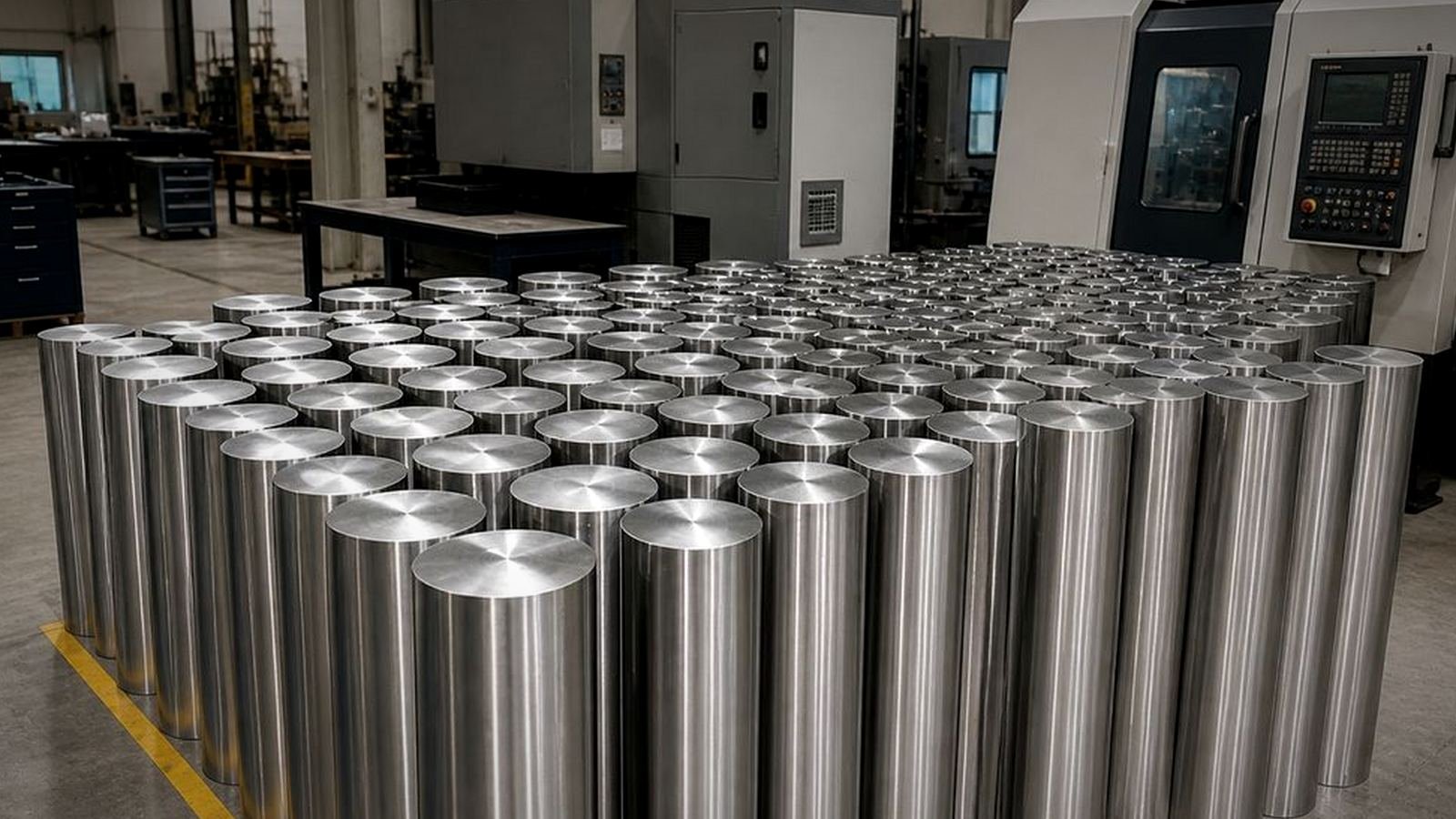

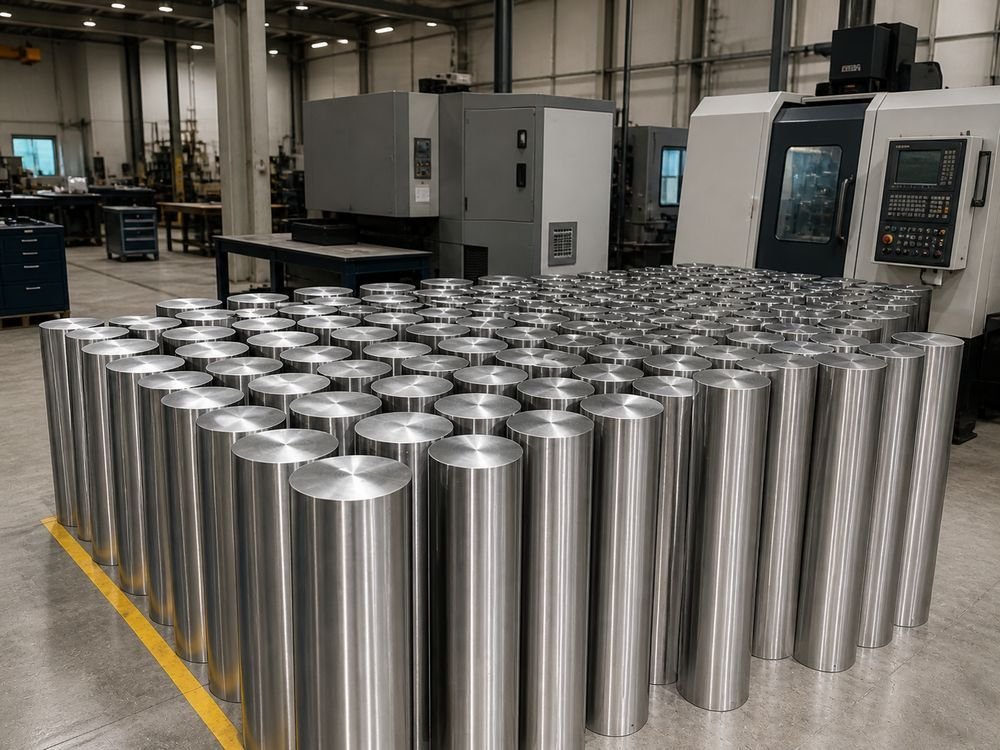

Stainless bollards in production in our workshop
Stainless bollards in production in our workshop

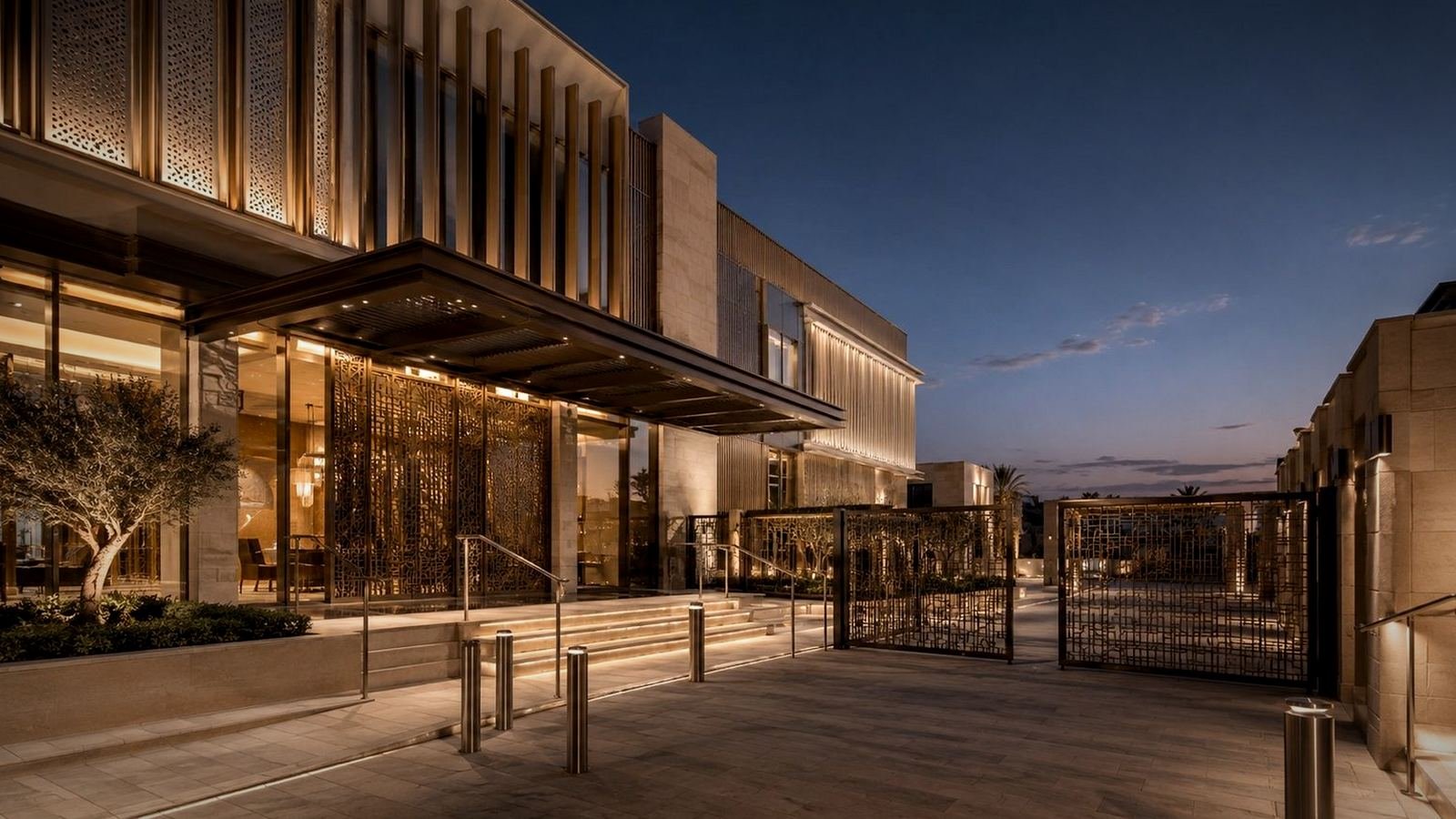

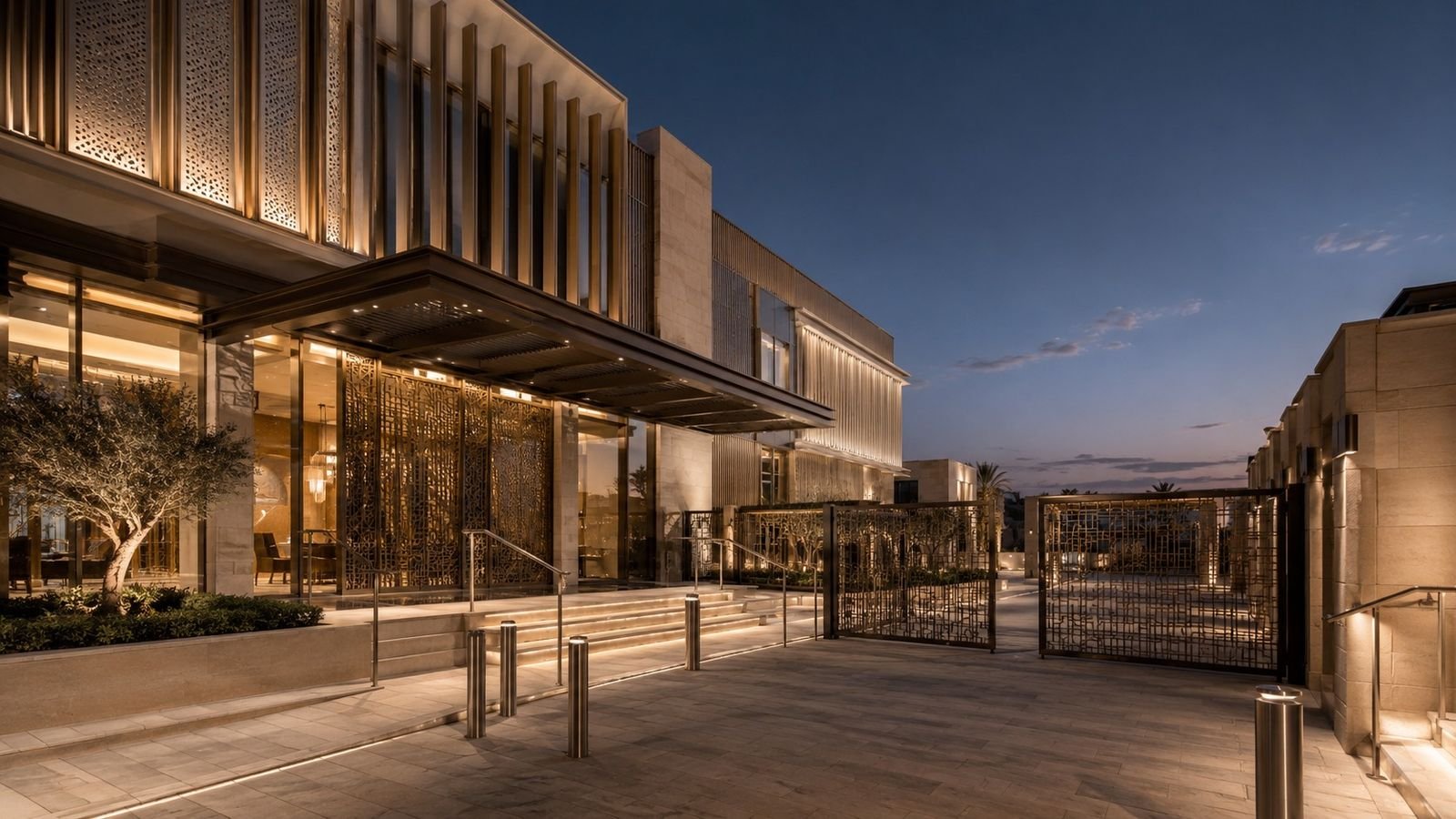

Bollards at a lit entrance
Bollards at a lit entrance
1 / 4

Overview

Bollards are the quiet guardians of a site. They separate cars from people, protect glass frontages and control access to plazas, driveways and service areas. We fabricate them in our own workshop, so diameter, height, wall thickness and finish are set to the project rather than taken from a catalog.

Where it goes

Built for real
conditions.

Stainless bollards are brushed or mirror polished for entrances and retail, while coated steel suits parking and service areas. Foundations, sleeves and locking details are supplied with every run, and our crews set them out and install them on site.

Building entrancesStorefrontsPlazas and walkwaysParking and drivewaysSchools and hospitalsGovernment and corporate sites

Tech specs

Typical specification.

MaterialsStainless 304 / 316, coated steel
Diameter114 to 273 mm
HeightTypically 800 to 1200 mm
FixingCast in, socketed, surface mounted

Technical data

Engineering details.

MaterialsStainless 304 / 316 sleeves, steel or concrete filled cores
Sizes114 to 273 mm diameter; typically 800 to 1,200 mm high
FoundationsCast in, socketed or surface plate, designed to the site slab
Crash rated systemsSourced as certified systems where ASTM F2656 or IWA 14-1 ratings are specified
FinishBrushed, mirror, powder coated
OptionsRemovable with keyed lock, LED rings, engraving

Typical values. Final values follow the project specification and approved shop drawings.

Submittals

What you receive.

  • Shop drawings and setting out drawings
  • Structural calculations
  • Material submittals and mill certificates
  • Samples and mockups
  • Inspection and test plan (ITP)
  • Test reports, warranties and O&M manuals
